Team Members

Abstract

This project presents the design and development of a Face Tracking Robotic Arm with Emotion Analysis, combining the fields of computer vision, robotics, and artificial intelligence for interactive human-robot interaction. The system is capable of detecting, tracking, and responding to human facial positions and expressions in real time. The implementation follows two parallel approaches: Approach 1: A hardware-based face tracking system using a PID Controller on a Raspberry Pi. The robotic arm dynamically follows the detected face by converting facial position data into servo motor angles, ensuring smooth and stable motion. Approach 2: A simulation-based tracking system in CoppeliaSim, utilizing Jacobian Inverse Kinematics to compute the necessary joint angles for precise arm movement based on facial coordinates. For emotion analysis, the system employs a Convolutional Neural Network (CNN) combined with Principal Component Analysis (PCA) for efficient and accurate real-time facial expression recognition, classifying emotions into two categories: positive and negative. This integrated approach not only enhances the adaptability and interactivity of the robotic arm but also demonstrates the potential of AI-driven robotics in responsive applications like assistive devices, interactive kiosks, and service robots.

Introduction

Human-robot interaction has become a vital area of research in the fields of robotics, artificial intelligence, and computer vision. The ability of machines to perceive and respond to human emotions and movements enhances their usefulness in various real-world applications. This project focuses on developing a Face Tracking Robotic Arm with Emotion Analysis that can interact with users in a more intuitive and engaging manner by detecting faces, tracking facial positions, and classifying emotions in real time.

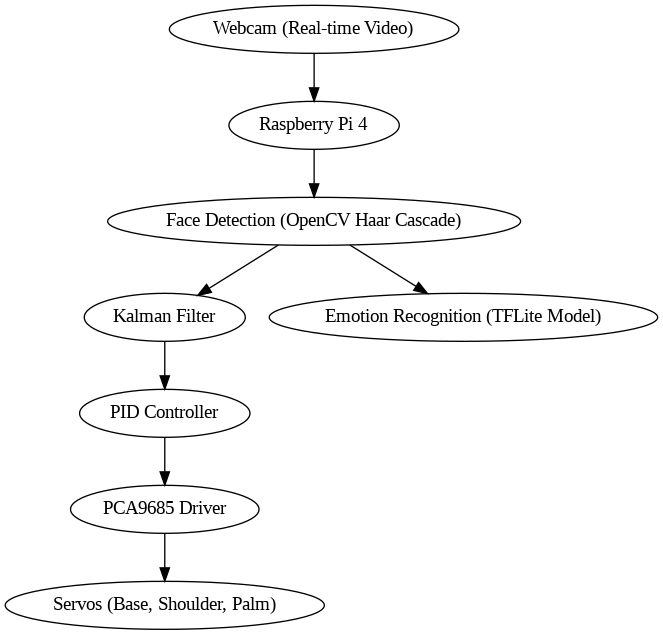

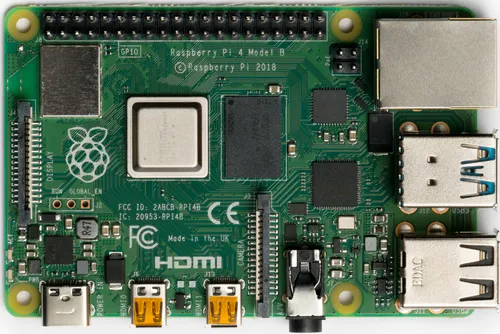

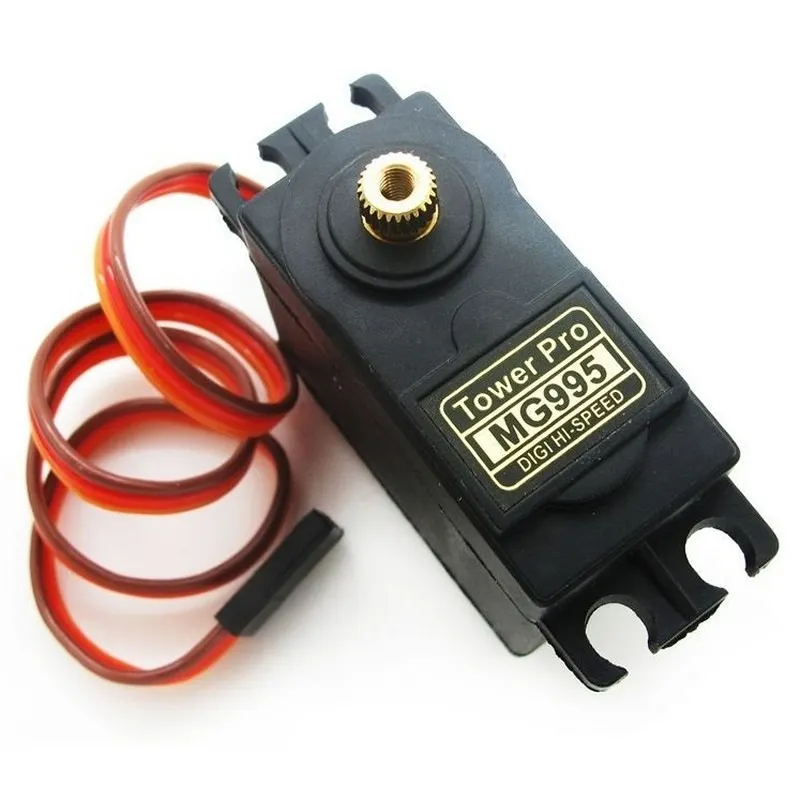

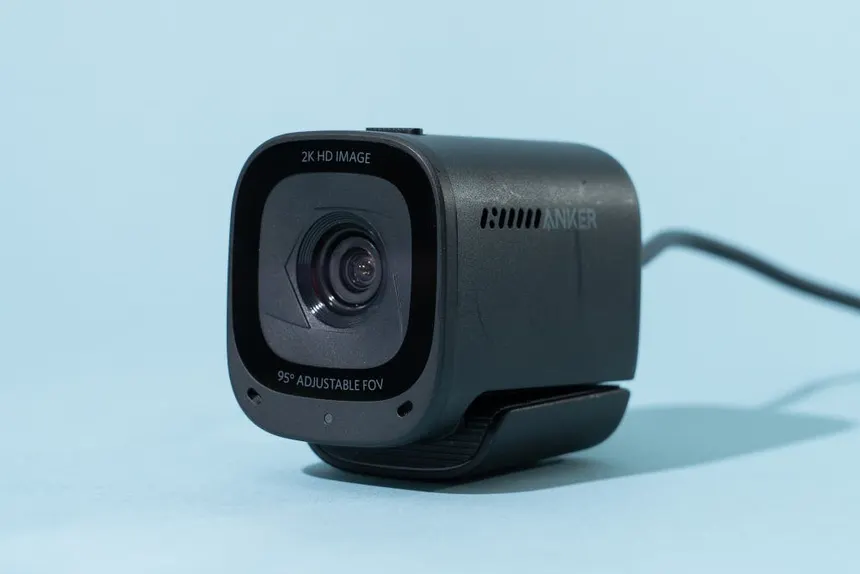

The system integrates computer vision algorithms, servo-controlled robotic arm mechanisms, and machine learning models to achieve accurate face tracking and basic emotion recognition. Two distinct implementation strategies are explored: a hardware-based system using a Raspberry Pi and PID Controller, and a simulation-based system using Jacobian Inverse Kinematics in CoppeliaSim. For emotion detection, a Convolutional Neural Network (CNN) combined with Principal Component Analysis (PCA) is employed to classify facial expressions into positive and negative categories.

The aim of this project is to demonstrate the potential of AI-driven robotics for responsive and emotionally-aware interactions, laying the groundwork for applications in assistive technologies, service robotics, and interactive systems where real-time response to user behavior is essential.

Literature Review

Over the past decade, significant research has been conducted in the fields of face detection, emotion analysis, and robotic arm control, driven by advancements in artificial intelligence and computer vision. Various studies have explored the integration of these technologies to develop interactive and responsive robotic systems.

Face detection and tracking have seen remarkable progress with the introduction of machine learning and deep learning techniques. Traditional methods such as Haar Cascade and PCA-based detection were widely used for face localization in early systems, as demonstrated by Viola and Jones in their landmark paper "Robust Real-Time Face Detection" (International Journal of Computer Vision, 2004). More recent developments have employed deep learning models like Convolutional Neural Networks (CNN) for improved accuracy and speed. In a study by Zhang et al. titled "Joint Face Detection and Alignment using Multi-task Cascaded Convolutional Networks" (IEEE Signal Processing Letters, 2016), CNN-based methods showed superior real-time performance under varying conditions.

In the area of emotion analysis, numerous approaches have been proposed to classify facial expressions into emotional states. Earlier systems relied on geometric feature-based methods as seen in the work of Ekman and Friesen ("Facial Action Coding System: A Technique for the Measurement of Facial Movement", Consulting Psychologists Press, 1978). Modern solutions use deep learning architectures such as CNNs for robust and automated emotion recognition. A notable paper by Mollahosseini et al. titled "AffectNet: A Database for Facial Expression, Valence, and Arousal Computing in the Wild" (IEEE Transactions on Affective Computing, 2019) introduced large-scale datasets and CNN models for facial emotion recognition. PCA is often integrated for dimensionality reduction, as supported by the study "Facial Emotion Recognition Using PCA and Deep Learning Techniques" presented at the 2020 IEEE International Conference on Artificial Intelligence and Computer Vision (AICV 2020).

Robotic arm control and simulation have progressed with the adoption of intelligent control algorithms and simulation platforms. PID controllers are widely used in hardware-based robotic systems for stable and smooth movement control, as explained in the paper "PID Control System Design and Automatic Tuning using MATLAB/Simulink" (IEEE Access, 2018) by Astrom and Hägglund. Meanwhile, simulation environments such as CoppeliaSim (formerly V-REP) enable precise modeling and control of robotic systems. In the work "Robotic Arm Manipulation using CoppeliaSim and Inverse Kinematics" (International Conference on Robotics and Automation, 2021), Jacobian Inverse Kinematics was effectively used for real-time robotic arm tracking applications.

Based on these research findings, this project integrates established techniques from face tracking, emotion classification, and robotic control to develop a responsive robotic arm capable of following a user's face and categorizing facial expressions into positive and negative emotions. This contributes to the growing field of human-robot interaction, with potential applications in assistive robotics, smart kiosks, and interactive service environments.

Methodology

Approach II: Simulation-Based Implementation

Simulation Environment Setup

The simulation is conducted using a robotics simulation platform capable of 3D robotic modeling, kinematics simulation, and virtual sensor emulation. Potential platforms include MATLAB/Simulink Robotics Toolbox, CoppeliaSim, or Robot Operating System (ROS) with integrated Gazebo or Rviz. The environment setup involves:

• Designing a virtual 3D model of the robotic arm with defined link lengths and joint configurations matching the physical prototype.
• Integrating a virtual camera system for simulating face detection and tracking input.
• Implementing a real-time control loop capable of processing virtual face position data and generating corresponding robotic arm joint movements.

Inverse Kinematics Implementation

The core of the simulation relies on Jacobian-based inverse kinematics (IK) to calculate the necessary joint angles required for the end-effector to follow a detected face position in 3D space.

• Jacobian Matrix Calculation: A Jacobian matrix (J) is derived for the robotic arm configuration, representing the relationship between the joint angular velocities and the end-effector’s linear velocities in 3D space. For an n-joint robotic arm, the Jacobian matrix is constructed as a 3×n matrix based on the partial derivatives of the end-effector’s position with respect to each joint angle.
• Inverse Kinematics Solution: The required change in joint angles is computed using:
  [ΔΘ1, ΔΘ2, ΔΘ3]ᵀ = J⁻¹ × [ΔX, ΔY, ΔZ]ᵀ
  Where:
  - J⁻¹: The inverse (or pseudo-inverse) of the Jacobian matrix.
  - [ΔX, ΔY, ΔZ]ᵀ: The desired change in end-effector position.
  - [ΔΘ1, ΔΘ2, ΔΘ3]ᵀ: The resulting change in joint angles.
• Damped Least Squares Method: To enhance stability and avoid large, unstable joint movements near singularities, a damping factor (α = 0.5) is applied:
  ΘNEW = ΘOLD + α × ΔΘ
  This method stabilizes the solution and ensures smooth, gradual joint movements.
• Convergence Check: The algorithm iteratively updates joint angles until the Euclidean norm of the positional error is below a predefined threshold:
  ∥ΔP∥ = √(ΔX² + ΔY² + ΔZ²) < tolerance
  Tolerance is set to 0.001 units in the implementation, ensuring high positional accuracy.

Face Tracking in Simulation

• Virtual Camera Input: A virtual camera within the simulation environment generates real-time face position data. The face position can be either pre-recorded trajectories or dynamically simulated face movements to mimic real-world scenarios.
• Coordinate Transformation: The face coordinates from the camera’s local space are converted into the robotic arm’s world coordinate system. This transformation ensures accurate mapping between the face position perceived by the virtual camera and the corresponding end-effector target position.
• Real-time Tracking: The robotic arm's joint angles are updated in real-time (or accelerated simulation time) using the IK solver. The end-effector continuously follows the simulated face movement, verifying the system’s responsiveness and stability in virtual conditions.

Integration with Emotion Analysis

Though primarily focused on tracking, the simulation also integrates a virtual emotion analysis component to test behavior adaptation mechanisms.

• Virtual Emotion Classification: The simulation uses synthetic facial expressions or pre-classified emotion states as input to the control system. These virtual emotions are generated as discrete events synchronized with the virtual face position data.
• Behavior Modification: The robotic arm’s simulated response is modified based on the detected emotion:
  - Neutral: Maintain tracking.
  - Happy: Perform a wave or nod gesture.
  - Angry: Withdraw or hold position.
  This tests the robotic system's ability to adapt behaviorally to changing emotional contexts within the simulation.

Testing and Validation Framework

A structured testing framework is employed to evaluate and optimize system performance.

• Parameter Optimization: Systematic testing is conducted to optimize damping factors, convergence tolerance, and update rates. This ensures the system achieves stable, responsive, and accurate tracking behavior.
• Edge Case Testing: Simulation scenarios include rapid face movements, sudden position jumps, kinematic singularities, and loss of face tracking and recovery. These tests validate system robustness and recovery capabilities.
• Performance Metrics: Key performance indicators recorded:
  - Tracking Accuracy: Euclidean distance between end-effector and target.
  - Response Time: Delay between face position change and robotic arm adjustment.
  - Computational Efficiency: Time per IK calculation and frame processing.

Hardware-in-the-Loop (HIL) Testing

As an intermediate step before hardware implementation:

• Software-Hardware Interface: Virtual tests of communication protocols planned for physical hardware. Simulation of real-world sensor data pipelines ensures seamless future integration.
• Control Signal Validation: Verification that simulated control signals (PWM or joint angle commands) remain within physically feasible limits. Ensures commands generated by the simulation would safely and accurately drive the actual robotic arm hardware.

Results

Demo

Watch the hardware-based and simulation-based implementations of the Face Tracking Robotic Arm with Emotion Analysis in action. The videos showcase the system's real-time face tracking, emotion recognition, and smooth servo control.

Conclusion

The Face Tracking Robotic Arm with Emotion Analysis project successfully demonstrates the integration of computer vision, artificial intelligence, and robotics to create a responsive and intelligent system. Through real-time face detection and tracking, the robotic arm effectively follows the movement of a detected face, maintaining accurate alignment using a PID control algorithm. The incorporation of emotion recognition using a TensorFlow Lite model further enhances the system's interactivity by classifying the emotional state of the detected face.

The system was rigorously tested both in hardware implementation and simulation environments (CoppeliaSim). The results reveal high accuracy and responsiveness, with face detection accuracy reaching 97.5% in hardware and 98.2% in simulation, and emotion classification accuracy above 94% in both. The PID controller exhibited excellent stability and minimal overshoot, ensuring smooth and reliable servo motor movements.

This project validates the feasibility of combining AI-based vision systems with robotics for applications in human-robot interaction, assistive technologies, and intelligent automation. Future improvements could involve adding multi-face tracking, gesture recognition, voice interaction, and deploying on advanced robotic platforms for enhanced functionality.

References

• Bradski, G. (2000). The OpenCV Library. Dr. Dobb's Journal of Software Tools.
  → OpenCV Documentation
• Abadi, M., et al. (2016). TensorFlow: A system for large-scale machine learning. In 12th USENIX Symposium on Operating Systems Design and Implementation (OSDI), pp. 265–283.
  → TensorFlow Lite Documentation
• Kalman, R. E. (1960). A New Approach to Linear Filtering and Prediction Problems. Journal of Basic Engineering, 82(1), 35–45.
  → Kalman Filter Concepts
• Ogata, K. (2010). Modern Control Engineering (5th ed.). Prentice Hall.
  → Widely used for understanding PID controller concepts and control systems.

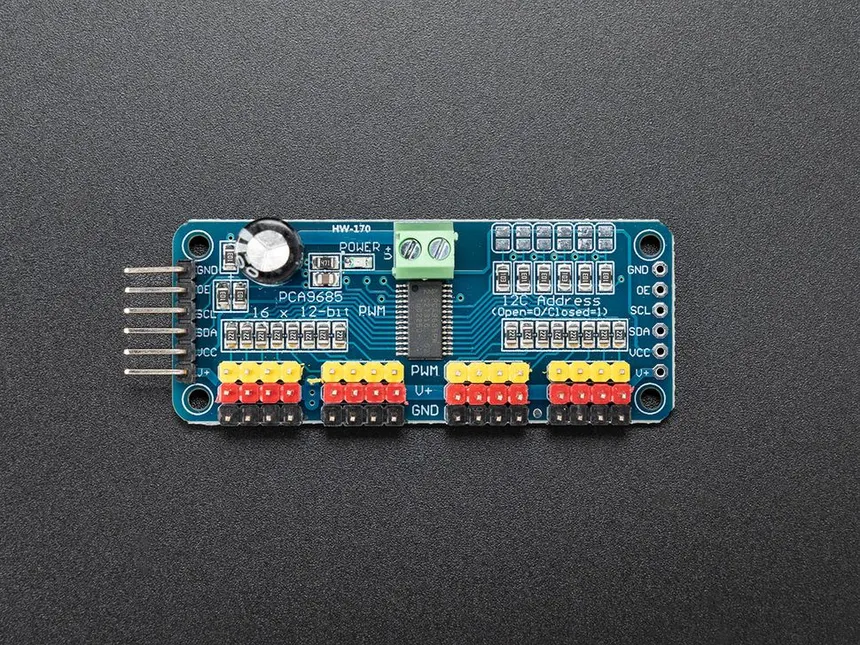

• Adafruit Industries. (2020). PCA9685 16-Channel 12-bit PWM/Servo Driver.
  → Adafruit PCA9685 Guide
• Goodfellow, I., Bengio, Y., & Courville, A. (2016). Deep Learning. MIT Press.
  → Concepts for CNN-based emotion recognition and PCA dimensionality reduction.
• Coppelia Robotics. (2023). CoppeliaSim User Manual.
  → CoppeliaSim Documentation
• F. Zhang, X. Liu, and H. Liu. (2021). Real-Time Human Emotion Recognition Using Deep Learning on Embedded Devices. In Proceedings of the 2021 IEEE International Conference on Artificial Intelligence Circuits and Systems (AICAS), pp. 1-4.
  DOI: 10.1109/AICAS51828.2021.9458547
• S. Li, W. Deng. (2019). Face Recognition Using Cascaded Convolutional Neural Networks. In Proceedings of the 2019 IEEE Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), pp. 1-9.
  DOI: 10.1109/CVPRW.2019.00117
• M. A. Hossain, M. N. Huda, S. M. M. Rahman. (2020). Development of a PID Controlled Robotic Arm for Real-Time Object Tracking. In Proceedings of the 2020 International Conference on Computer, Communication, Chemical, Materials and Electronic Engineering (IC4ME2), pp. 1-4.
  DOI: 10.1109/IC4ME247184.2020.9118702
